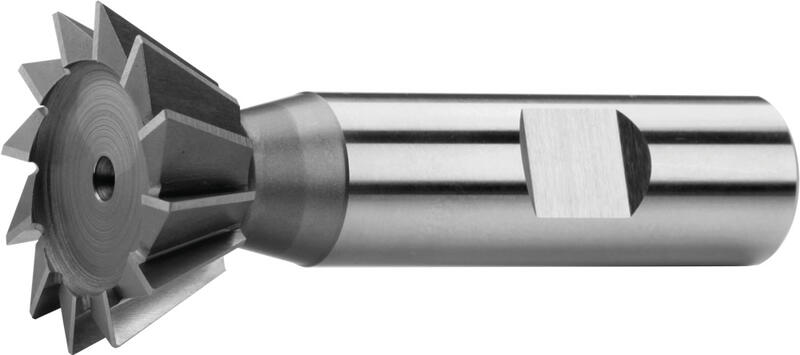

Frézy úhlové čelní, ploška weldon
Popis produktu

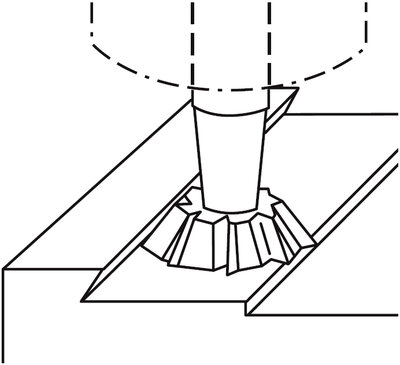

Frézy úhlové čelní, ploška weldon, vyrobené z rychlořezné oceli HSS Co5, dle normy DIN 1833 C, vhodné na rybinové drážky, pro obrábění ocelí, titanu a slitin titanu.
|

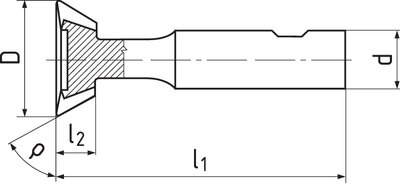

ϱ
±30' |
D
js 16 |
d
h 6 | l1 | l2 | Z | Kód zboží | Cena/ks | Skladem | Počet ks | |
|---|---|---|---|---|---|---|---|---|---|---|
| 45 | 16 | 12 | 60 | 4 | 10 | 330215.045160 | 924,- Kč 785,- Kč | Ne |
|
|
| 45 | 20 | 12 | 63 | 5 | 10 | 330215.045200 | 1 179,- Kč 1 002,- Kč | Ano |
|
|
| 45 | 25 | 12 | 67 | 6,3 | 10 | 330215.045250 | 1 472,- Kč 1 251,- Kč | Ano |
|
|
| 45 | 32 | 16 | 71 | 8 | 12 | 330215.045320 | 1 871,- Kč 1 590,- Kč | Ano |
|
|
| 45 | 40 | 16 | 80 | 10 | 12 | 330215.045400 | 3 197,- Kč 2 717,- Kč | Ano |
|
|
| 50 | 16 | 12 | 60 | 5 | 10 | 330215.050160 | 924,- Kč 785,- Kč | Ano |
|
|
| 50 | 20 | 12 | 63 | 6,3 | 10 | 330215.050200 | 1 179,- Kč 1 002,- Kč | Ano |
|
|
| 50 | 25 | 12 | 67 | 8 | 10 | 330215.050250 | 1 472,- Kč 1 251,- Kč | Ano |
|
|
| 55 | 16 | 12 | 60 | 5,6 | 10 | 330215.055160 | 924,- Kč 785,- Kč | Ano |
|
|
| 55 | 20 | 12 | 63 | 7,1 | 10 | 330215.055200 | 1 179,- Kč 1 002,- Kč | Ano |
|
|
| 55 | 25 | 12 | 67 | 9 | 10 | 330215.055250 | 1 472,- Kč 1 251,- Kč | Ano |
|
|
| 60 | 16 | 12 | 60 | 6,3 | 10 | 330215.060160 | 924,- Kč 785,- Kč | Ne |
|
|
| 60 | 20 | 12 | 63 | 8 | 10 | 330215.060200 | 1 179,- Kč 1 002,- Kč | Ne |
|
|
| 60 | 25 | 12 | 67 | 10 | 10 | 330215.060250 | 1 472,- Kč 1 251,- Kč | Ano |
|
|
| 60 | 32 | 16 | 71 | 12,5 | 10 | 330215.060320 | 1 802,- Kč 1 532,- Kč | Ano |
|
|
| 60 | 40 | 16 | 80 | 16 | 12 | 330215.060400 | 3 197,- Kč 2 717,- Kč | Ne |
|
|
| 65 | 16 | 12 | 60 | 6,3 | 12 | 330215.065160 | 924,- Kč 785,- Kč | Ano |
|
|
| 65 | 25 | 12 | 67 | 10 | 10 | 330215.065250 | 1 472,- Kč 1 251,- Kč | Ano |
|
|
| 70 | 16 | 12 | 60 | 7 | 12 | 330215.070160 | 924,- Kč 785,- Kč | Ano |
|
|
| 70 | 20 | 12 | 63 | 9 | 10 | 330215.070200 | 1 179,- Kč 1 002,- Kč | Ano |
|
|
| 70 | 25 | 16 | 67 | 11 | 10 | 330215.070250 | 1 472,- Kč 1 251,- Kč | Ano |
|
|
| 75 | 16 | 12 | 60 | 8 | 10 | 330215.075160 | 877,- Kč 745,- Kč | Ano |
|
|
| 75 | 25 | 12 | 67 | 10 | 12 | 330215.075250 | 1 398,- Kč 1 188,- Kč | Ano |
|
|
| 80 | 16 | 12 | 60 | 8 | 10 | 330215.080160 | 877,- Kč 745,- Kč | Ano |
|
|
| 80 | 25 | 12 | 67 | 10 | 12 | 330215.080250 | 1 398,- Kč 1 188,- Kč | Ano |
|
|
| 85 | 16 | 12 | 60 | 8 | 10 | 330215.085160 | 877,- Kč 745,- Kč | Ne |
|
|
| 85 | 25 | 12 | 67 | 10 | 12 | 330215.085250 | 1 398,- Kč 1 188,- Kč | Ano |
|
ϱ ≧ 65 ≠ DIN 1833 C
Řezné podmínky
Materiál |
Pevnost |
Ap |
Ae |
Vc |
fz(mm/z) Ø 16 |
Ø 20 |
Ø 25 |
Ø 32 |
Ø 36 |
Ø 40 |
|---|---|---|---|---|---|---|---|---|---|---|
| P.1 | Automatové a konstrukční oceli | ≤ 600 N/mm² | 1xl2 | t1 (DIN 6888) | 28 | 0.011 | 0.014 | 0.018 | 0.022 | 0.025 | 0.028 |
| P.2 | Konstrukční a lité oceli | ≤ 850 N/mm² | 1xl2 | t1 (DIN 6888) | 24 | 0.01 | 0.012 | 0.015 | 0.019 | 0.022 | 0.024 |
| P.3 | Nástrojové oceli nízkolegované | ≤ 1100 N/mm² | 1xl2 | t1 (DIN 6888) | 18 | 0.01 | 0.012 | 0.015 | 0.019 | 0.022 | 0.024 |
| N.2 | Slitiny hliníku (Si ≤ 12%) | ≤ 600 N/mm² | 1xl2 | t1 (DIN 6888) | 41 | 0.011 | 0.014 | 0.018 | 0.022 | 0.025 | 0.028 |
| S.2 | Titan, slitiny titanu | ≤ 1250 N/mm² | 1xl2 | t1 (DIN 6888) | 9 | 0.007 | 0.08 | 0.011 | 0.013 | 0.015 | 0.017 |
Vlastnosti produktu
Válcová stopka s ploškou (Weldon) dle DIN 1835 B.
Ostří na čele i obvodě úhlové frézy.
Vysoce výkonná rychlořezná ocel s dobrou houževnatostí pro frézy a pro frézování materiálů do pevnosti 1200 MPa.
Úhel šroubovice = 0°, úhel čela = 0°
