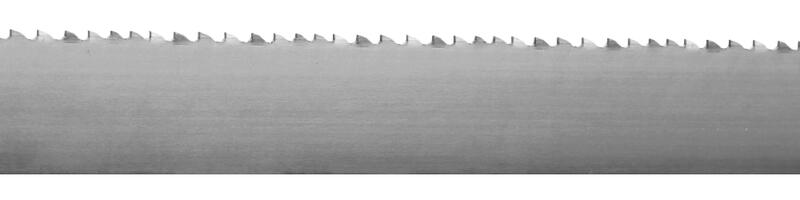

Bi-metal band saw blades, Profile series, V-POS

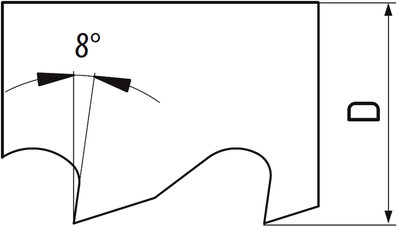

| D | S | Item code | On stock |
|---|---|---|---|
| 41 | 1,3 | 722461.410130 2/3 | Yes |
The belts are ordered by meters, i.e. 1 piece = 1 meter. If you want to weld the belt, please also add the weld for the respective width (6 - 34 mm or 41 - 80 mm) to the cart. If you want more strips, order the total length of strips (sum of all strips required) and the corresponding number of welds. You can specify your requirements (different strip lengths, etc...) in the notes in the basket.
Cutting conditions
Material |
Strength |
|---|---|
| P.1 | Free-cutting steels, general construction steels | ≤ 600 N/mm² |
| P.2 | General construction steels, steel castings | ≤ 850 N/mm² |
| P.3 | Tool steels low alloyed | ≤ 1100 N/mm² |
| P.4 | Heat treatable steels | ≤ 900 N/mm² |
| P.5 | Tool steels high alloyed | ≤ 1100 N/mm² |
| M.1 | Corrosion- and acid-proof steels | ≤ 750 N/mm² |
| M.2 | Corrosion- and acid-proof steels | 750-850 N/mm² |
| M.3 | Corrosion- and acid-proof steels | > 850 N/mm² |
| K.1 | Cast iron (≤ 240 HB) | ≤ 820 N/mm² |
| K.2 | Cast iron (> 240 HB) | > 800 N/mm² |
| N.1 | Aluminium, Aluminium cast alloys Si (Si ≤ 6%) | ≤ 400 N/mm² |
| N.2 | Aluminium cast alloys Si (Si ≤ 12%) | ≤ 600 N/mm² |
| N.3 | Aluminium cast alloys Si (Si > 12%) | ≤ 600 N/mm² |
| N.4 | Cooper-zinc alloys, cooper-tin alloys | ≤ 850 N/mm² |
| S.1 | Chrome-nickel alloys | ≤ 1500 N/mm² |
