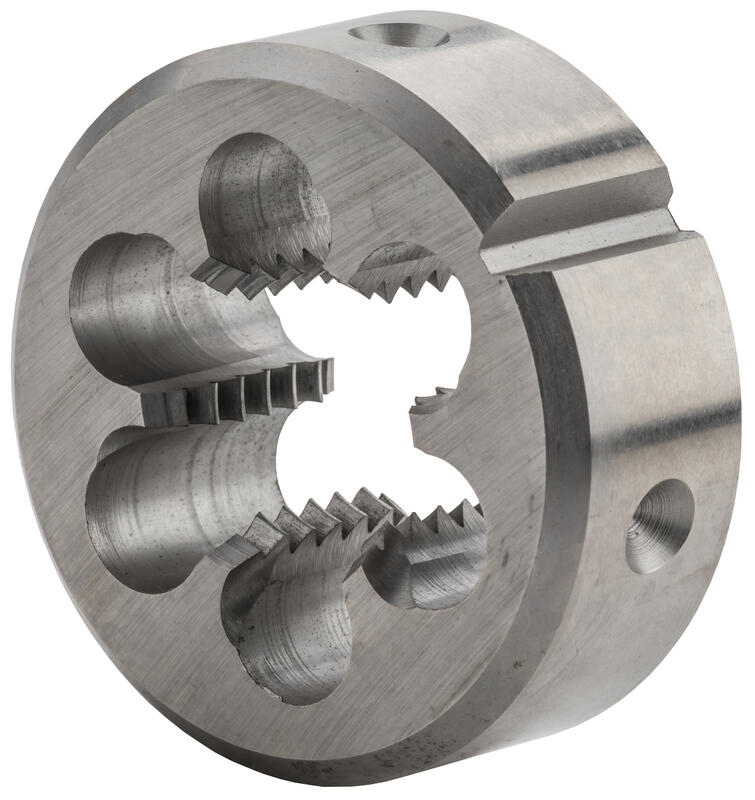

Circular dies, for stainless steel
|
D

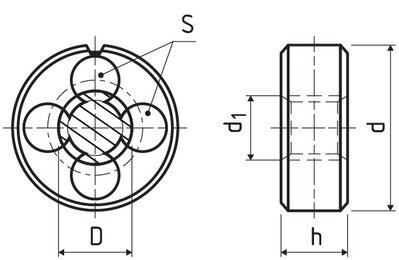

6 g | P | S | d | d1 | h | Item code | On stock |
|---|---|---|---|---|---|---|---|
| M2 | 0,4 | 3 | 16 | 1,93 | 5 | CD81075.020 | Yes |
| M2,2 | 0,45 | 3 | 16 | 2,13 | 5 | CD81075.022 | No |
| M2,5 | 0,45 | 3 | 16 | 2,43 | 5 | CD81075.025 | Yes |
| M3 | 0,5 | 3 | 20 | 2,92 | 5 | CD81075.030 | Yes |
| M3,5 | 0,6 | 3 | 20 | 3,41 | 5 | CD81075.035 | Yes |
| M4 | 0,7 | 3 | 20 | 3,91 | 5 | CD81075.040 | Yes |
| M4,5 | 0,75 | 3 | 20 | 4,41 | 5 | CD81075.045 | No |
| M5 | 0,8 | 4 | 20 | 4,9 | 7 | CD81075.050 | Yes |
| M6 | 1 | 4 | 20 | 5,88 | 7 | CD81075.060 | Yes |
| M7 | 1 | 4 | 25 | 6,88 | 9 | CD81075.070 | Yes |
| M8 | 1,25 | 4 | 25 | 7,87 | 9 | CD81075.080 | Yes |
| M9 | 1,25 | 4 | 25 | 8,87 | 9 | CD81075.090 | No |
| M10 | 1,5 | 4 | 30 | 9,85 | 11 | CD81075.100 | Yes |
| M11 | 1,5 | 5 | 30 | 10,85 | 11 | CD81075.110 | No |
| M12 | 1,75 | 4 | 38 | 11,83 | 14 | CD81075.120 | Yes |
| M14 | 2 | 5 | 38 | 13,82 | 14 | CD81075.140 | Yes |
| M16 | 2 | 5 | 45 | 15,82 | 18 | CD81075.160 | Yes |
| M18 | 2,5 | 5 | 45 | 17,17 | 18 | CD81075.180 | No |
| M20 | 2,5 | 6 | 45 | 19,79 | 18 | CD81075.200 | Yes |
| M22 | 2,5 | 5 | 55 | 21,79 | 22 | CD81075.220 | No |
| M24 | 3 | 6 | 55 | 23,76 | 22 | CD81075.240 | Yes |
| M27 | 3 | 6 | 65 | 26,76 | 25 | CD81075.270 | No |
| M30 | 3,5 | 7 | 65 | 29,73 | 25 | CD81075.300 | Yes |
Cutting conditions
Material |
Strenght |
|---|---|
| P.3 | Tool steels low alloyed | ≤ 1100 N/mm² |
| P.4 | Heat treatable steels | ≤ 900 N/mm² |
| P.5 | Tool steels high alloyed | ≤ 1100 N/mm² |
| P.6 | Tool and treated steels | ≤ 900 N/mm² |
| M.1 | Corrosion- and acid-proof steels | ≤ 750 N/mm² |
| M.2 | Corrosion- and acid-proof steels | 750 - 850 N/mm² |
| M.3 | Corrosion- and acid-proof steels | > 850 N/mm² |
| K.1 | Cast iron (≤ 240 HB) | ≤ 820 N/mm² |
| K.2 | Cast iron (> 240 HB) | > 800 N/mm² |
| N.2 | Aluminium cast alloys Si (Si ≤ 12%) | ≤ 600 N/mm² |
| N.3 | Aluminium cast alloys Si (Si > 12%) | ≤ 600 N/mm² |
| N.4 | Copper-zinc alloys, cooper-tin alloys | ≤ 800 N/mm² |
Product attributes
Designed for stainless steel
Angle of thread
Thread standard
Very high performance high speed steel with good toughness for milling cutters and for milling of materials up to the strength of 1200 MPa.
Chamfer
Lead of screw thread
