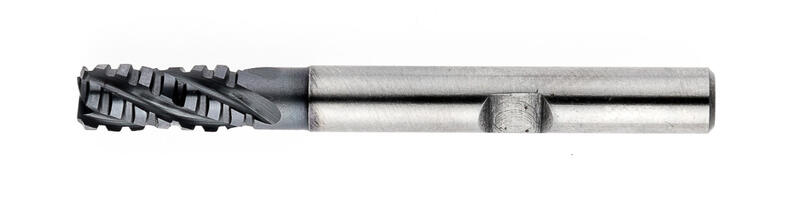

Cylindrical face milling cutters, short, 2 edges across the centre, 30°, type NR, weldon face, diameter 6 mm, AlTiN coating
D | d | l1 | l2 | Z | Item code | On stock |
---|---|---|---|---|---|---|
6 | 6 | 57 | 14 | 4 | DPR12618PX.060 AlTiN | Yes |
Product attributes
Clamping element
more +Straight shank with clamping flat (Weldon) according to DIN 1835 B.
Tool geometry
more +Lead of helix 30°.
Material HSS Co8
more +Extra high performance high speed steel with good toughness and great temperature resistance. It is applicable especially for milling of materials with high strength, austenitic steels, steels for warm working, etc.
Type HR-F
more +For machining of materials of medium and higher strength (up to 1200 MPa), surface roughness Ra 3,2 and more, in common application can be applied as roughing and finishing tool at the same time.
Feed direction possibility
Coating AlTiN
more +Offers similar qualities as TiAlN, but even higher hardness. Substanial temperature stability. Designed for the most demanding applications. It provides excellent result mainly when combined with HSSE-PM steels (ASP 2030). The milling cutters manufactured from this steel are coated with AlTiN as standard.
